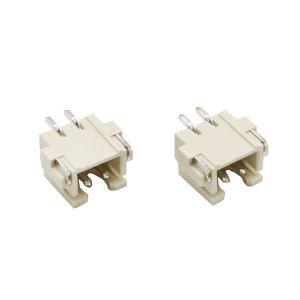

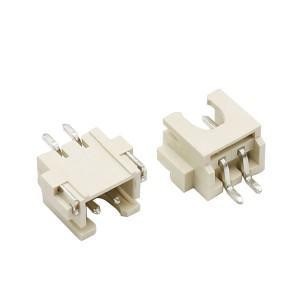

Wire To Board Header 2.54mm pitch PCB Housing Wafer bOX connector
SMT type- horizontal
Product Description
| Pitch | 2.54mm |
| Mounting Type | SMT |
| No. Of Positions | 2-15p |
| Rated current | 3.0A AC DC |
| Rated voltage | 250V AC/DC |
| Contact Resistance | 20m ohms MAX |
| Insulation Resistance | 1000m ohms min |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 1000V/1min AC |
| Housing | LCP,PA6T UL94V-0 |
| Contact | Brass Tin-plated |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Wire AWG | #22-28 |
Drawing
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection
system, typically in a rectangular layout. A mating pair of PCB
Connectors will either be for board-to-board or cable-to-board
(wire-to-board). The board-to-board layouts can give a range of PCB
connection orientations, all based on 90 degree increments:
- Parallel or mezzanine – both connectors are vertical orientation;
- 90 Degree, Right Angle, Motherboard to Daughterboard – one
connector is vertical, one horizontal;
- 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal
orientation.
Automatic Production
More than 80% XTKCONN products are made by automatic assembly
lines. As intelligent is more and more widely in use, We could only
adapt the development of the times,so that we could provide most
qualified products to our clients.
Advantage
1.Specializes in manufacturing connector more than 15 year as well
as export the relevant component more than 10 years
2.UL-marked products conform to REACH and ROHS regulations
3.Rich selection of connector,terminal,PIN,female header,
automotive terminals and more
4.ISO 9001:2008-certified factory quipped with automated assembly
lines
5.Up to 40 million units turned out each month
6.The KR BRAND can replace JST,Molex,YEONHO,Tyco,AMP,HRS,JWT,JMT,
ect.)
7.R&D team updates every month with 20 new items
8.Sample take up to 3 days,but can be finished with one day in
urgent cases
9. Specialized in providing connector solutions for customers and
providing customized services.
10.Custom orders welcome.
