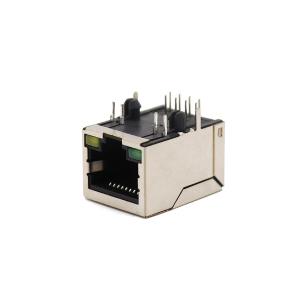

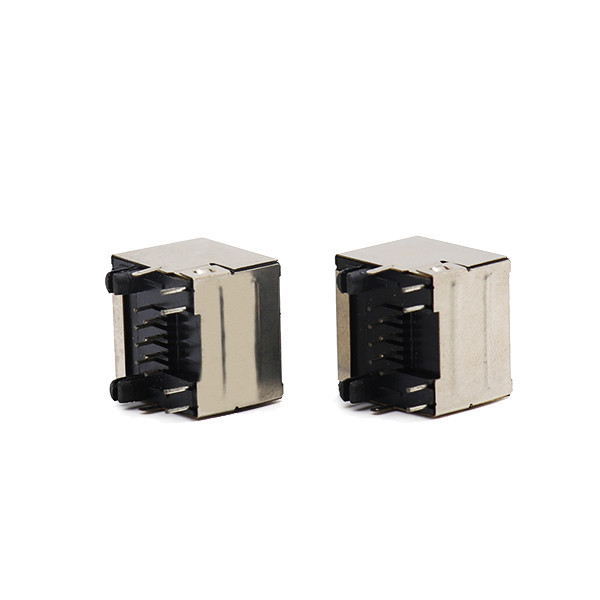

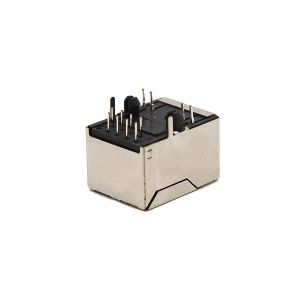

1x1 Port Shielded Female Jack 8P8C RJ45 Connector With Led Modular Jack

Ask Lasest Price
Brand Name :	XTKCONN
Model Number :	RJ45
Certification :	CE,SGS,ROHS,ISO9001
Price :	Negotiable price
Payment Terms :	L/C, T/T,Payyal
Supply Ability :	1KK pcs
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

1x1 Port Shielded Female Jack 8P8C RJ45 Connector With Led Modular Jack

1x1 Port Shielded Female Jack 8P8C RJ45 Connector With led Modular Jack

Product Description

Mounting Type	SMT
No. Of Positions	8p8c
Rated current	1A AC
Rated voltage	12V
Contact Resistance	30m ohms MAX
Insulation Resistance	100mohms min 100V DC
Extract Force	3-30N
Operation Temperature	-40℃ to +80℃
Withstanding Voltage	1000V AC
Housing	Thermoplastic
Contact	Phosphor bronze
Gender	Female
Price Term	FOB
Durability cycles	5000 Cycles Min
Lead Time	7-10 working Days

1x1 Port Shielded Female Jack 8P8C RJ45 Connector With Led Modular Jack

Drawing

Application

Networking Product: Nic, Hub, SWITCH, Router, Bridge,Work,

Station: PC/SYSTEM, Printer,Server ,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

Our advantage

1. Professional connector manufacturer, a variety of styles to choose from, we are factory direct sales, not only quality assurance but also affordable.

2. We can provide free samples for you to test, and then purchase if appropriate.

3. If the product is not what you want, please contact us directly and provide the product specifications you need.

4. Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.

FAQ

Q: Are you trading company or factory?

A: We are a factory with 15 years of connector manufacturing experience, almost all of our products are made by ourselves.

Q: When i can get quotation?

A: After you confirm the products you need, we will offer you a quotation.

Q: Do you accept customization?

A: Yes,we can accept customization as long as it is within our business scope, but you need to provide us with your demand quantity.
