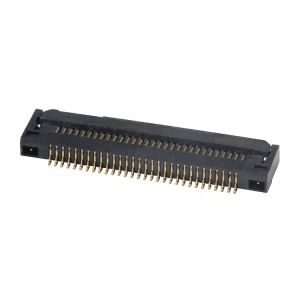

0.5mm Pitch 1.8H Vertical SMT Lock Type 30Pin FPC Connector
Description
Insulator | Thermoplastic High Temp. UL94V-O |
Contact | Copper Alloy |
Fitting | Copper Alloy |
Current Rating | 1A AC(rms)/DC |
Dielectric Withstand Voltage | 500V AC/rms |
Contact Resistance | ≤20M ohm max(initial) |
Insulation Resistance | 500 MΩ min |
Operating Temperature | -20°C~+85°C |
Durability | 10000Cycles |
Certification | CE ROHS |
Packaging | Tape&Reel |
SPQ | 2000pcs/Reel |
1. FFC connector is a flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material
and very thin tinned flat copper wire, which is pressed by a
high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending, and
folding, thin thickness, small volume, simple connection,
convenient disassembly, easy to solve electromagnetic shielding
(EMI).
4. FPC connector is a flexible printed circuit board. Generally
speaking, it is a PCB connector made of flexible materials (folding
and bending materials) for the connection between the LCD display
and the drives circuit (PCB).
Competitive Advantages
1, Samples can be provided for free in 1-3 days
2, 16 year's experience in the electronic business
3, Quality certification, including ROHS, SGS, ISO9001, and UL
certification
4, Strong R&D team specialized in connector and model design
5, Fast delivery, purchasing orders shipped in 3-10 days
6, Strict shipping,100% tested before delivery
Product Application
1. FFC connector is widely used in the connection between various
printer printheads and mainboards, signal transmission, and board
connection of products such as plotters, scanners, copiers, audio,
liquid crystal appliances, fax machines, and various DVD players.
2. FPC connector is mainly used in various fields such as digital
communication products, portable electronic products, computer
peripheral equipment, measuring instruments, automobile
electronics, etc., such as mobile phones, digital cameras, notebook
computers, mid, MP3 4 5, handheld game machines, audio systems,
etc.
FAQ
Q: How to place an Order?
A: 1, please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: Quality problems?
A: If there is any quality problem or question, we could offer
technical support or return service
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other
payments can also be negotiated
Q: How about samples?
A: Samples are free, but you need to pay the freight charge. Please
contact us for details.
